Womala Supercharger Repair Kit LR059341 LR088538 C2D40425 C2D53104 for LR & Jaguar

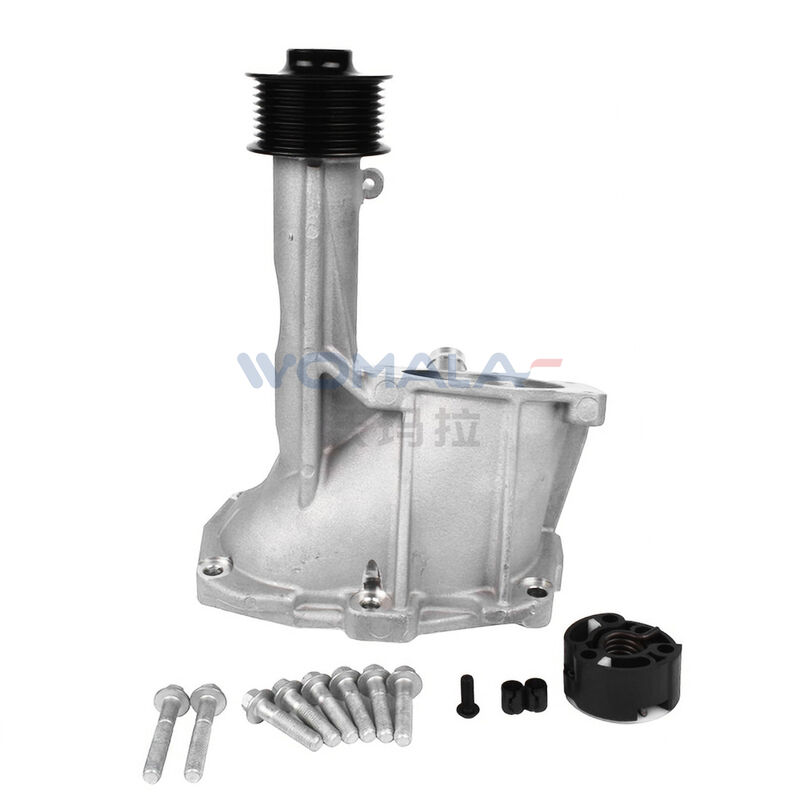

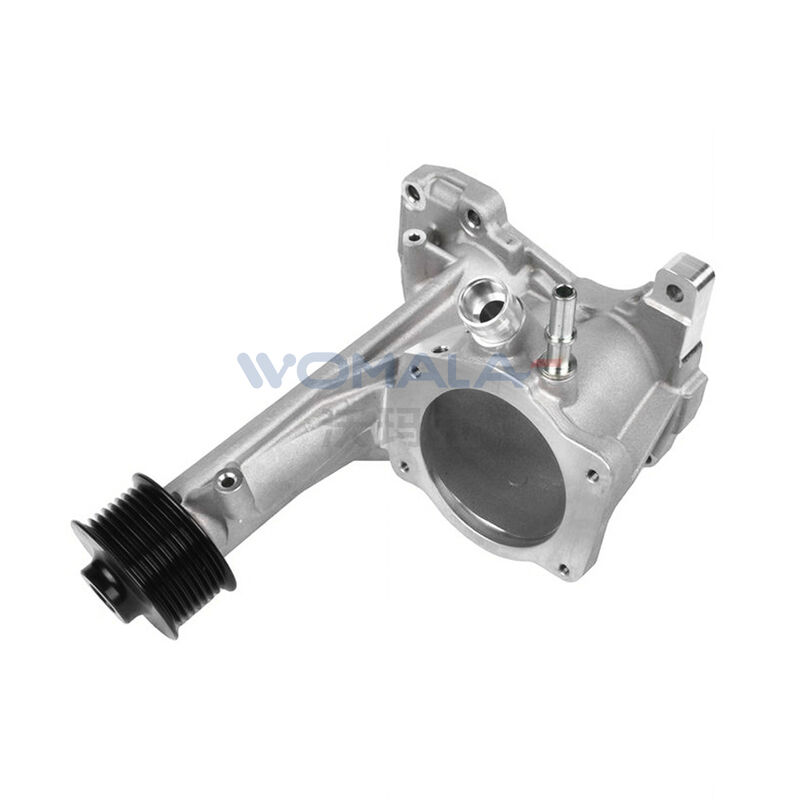

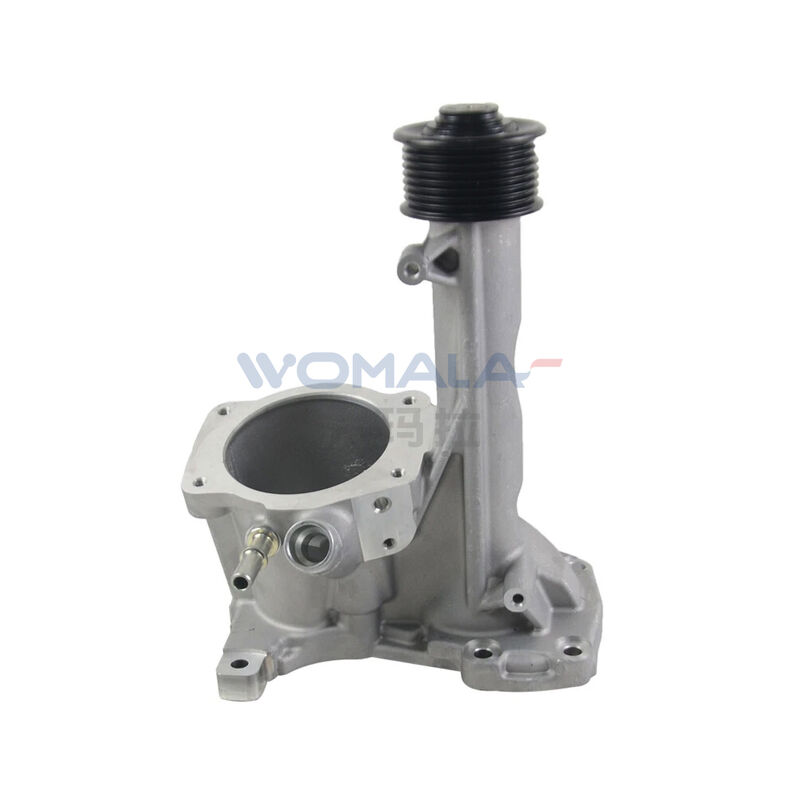

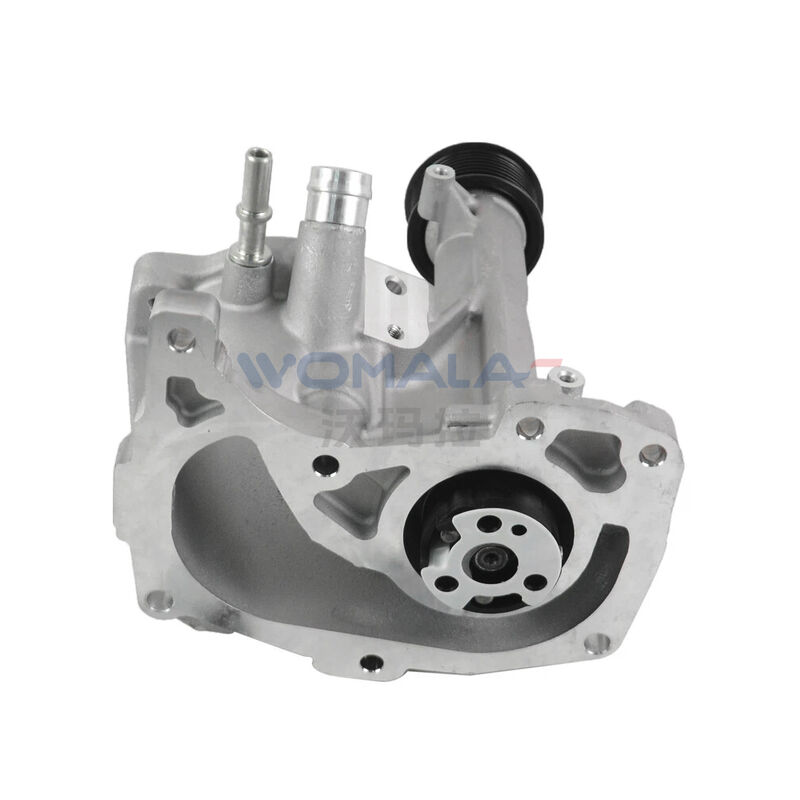

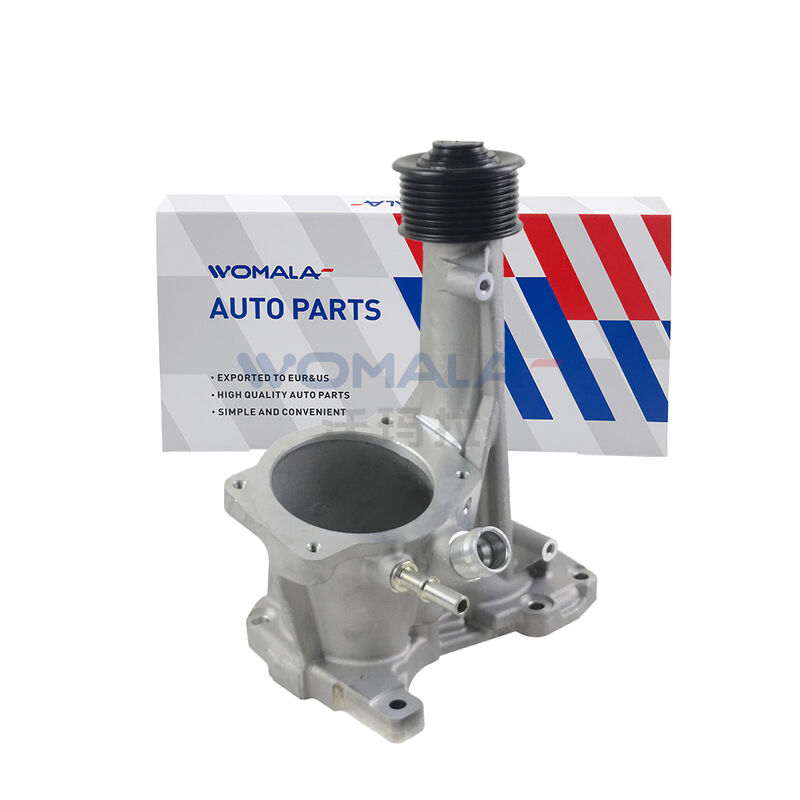

Product Details: Supercharger Repair Kit - LR059341

This supercharger repair kit is a genuine-equivalent service component designed specifically for the 3.0L V6 supercharged petrol engine. It contains the critical internal components required to address mechanical noise and play issues in the supercharger nose assembly, primarily the torsional isolator and spring support shaft. This kit enables cost-effective restoration of supercharger function without requiring complete unit replacement.

Core Function: The primary role of this kit is to rectify excessive backlash within the supercharger drive mechanism. Over time, the torsional isolator and its spring support shaft can wear, leading to excessive gear lash that manifests as a knocking, rattling, or clunking noise from the supercharger . This kit replaces the worn isolator components, restoring proper torsional damping and eliminating the characteristic noise, ensuring the supercharger operates smoothly and efficiently.

Technical Specifications:

• Part Number: LR059341

• Cross Reference Numbers: LR088538, C2D40425, C2D53104

• Kit Contents: Primarily includes the torsional isolator / coupling assembly for the supercharger drive

• Application: 3.0L V6 Supercharged Petrol Engine

• Commonly Replaced With: Intake manifold gasket (LR041681) during installation

Compatible Vehicle Models

Replacement Part Numbers

Failure Symptoms:

• Excessive knocking, rattling, or clunking noise from the front of the engine / supercharger area

• Noticeable free play when rotating the supercharger pulley by hand before the rotors begin to turn

• Noise often most prominent at idle or low engine speeds

• Potential degradation in supercharger performance if left unaddressed

Installation Notes:

This repair kit is designed to address specific supercharger noise conditions related to isolator wear. During installation, it is recommended to also replace the supercharger-to-cylinder head gaskets (Part #LR041681). Access to the supercharger requires removal of the intake system and related components.

Note: This repair kit is intended for the 3.0L V6 supercharged engine (AJ126 / 3.0 SCV6). It does not fit 5.0L V8 supercharged engines. Proper diagnosis is essential; if the supercharger pulley does not rotate freely or the rotor blades are damaged, complete supercharger replacement may be necessary . Verify compatibility using your vehicle's VIN number and engine code before purchasing. Professional installation is highly recommended.
